AeroTech M2050X-PS RMS-75/5120 Reload Kit (1 Pack) - 13205P

  • Sale
  • Regular price $405.99
Shipping calculated at checkout.


The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/5120 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a stainless steel forward seal disc (75FSDSS) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The M2050X-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Propellant X™ aerospace grade composite propellant formulation, which is a high ISP propellant, and produces a bright white flame with a moderate amount of smoke.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. Requires HAZMAT shipping via UPS or FEDEX. The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a driver’s license) and proof of Level 3 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

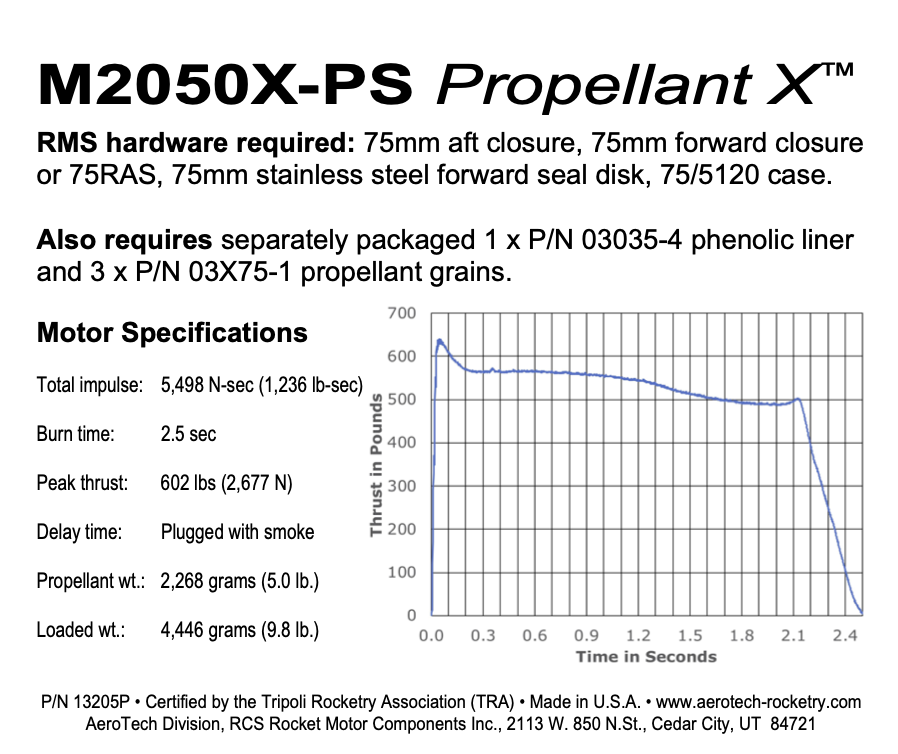

  • Specifications:

    Motor Diameter: 2.965 inches (75mm)

    Casing Length: 26.81 inches (681mm)

    Hardware Required: RMS-75/5120

    Total Impulse: 5498 N-sec

    Average Thrust: 2050 newtons

    Peak Thrust: 2677 N-sec

    Thrust Duration: 2.5 seconds

    Delay Time: plugged

    Propellant Weight: 2268 grams

    Motor Weight: 4446 grams

    Maximum Liftoff Weight: Due to the variables involved, AeroTech/Quest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
